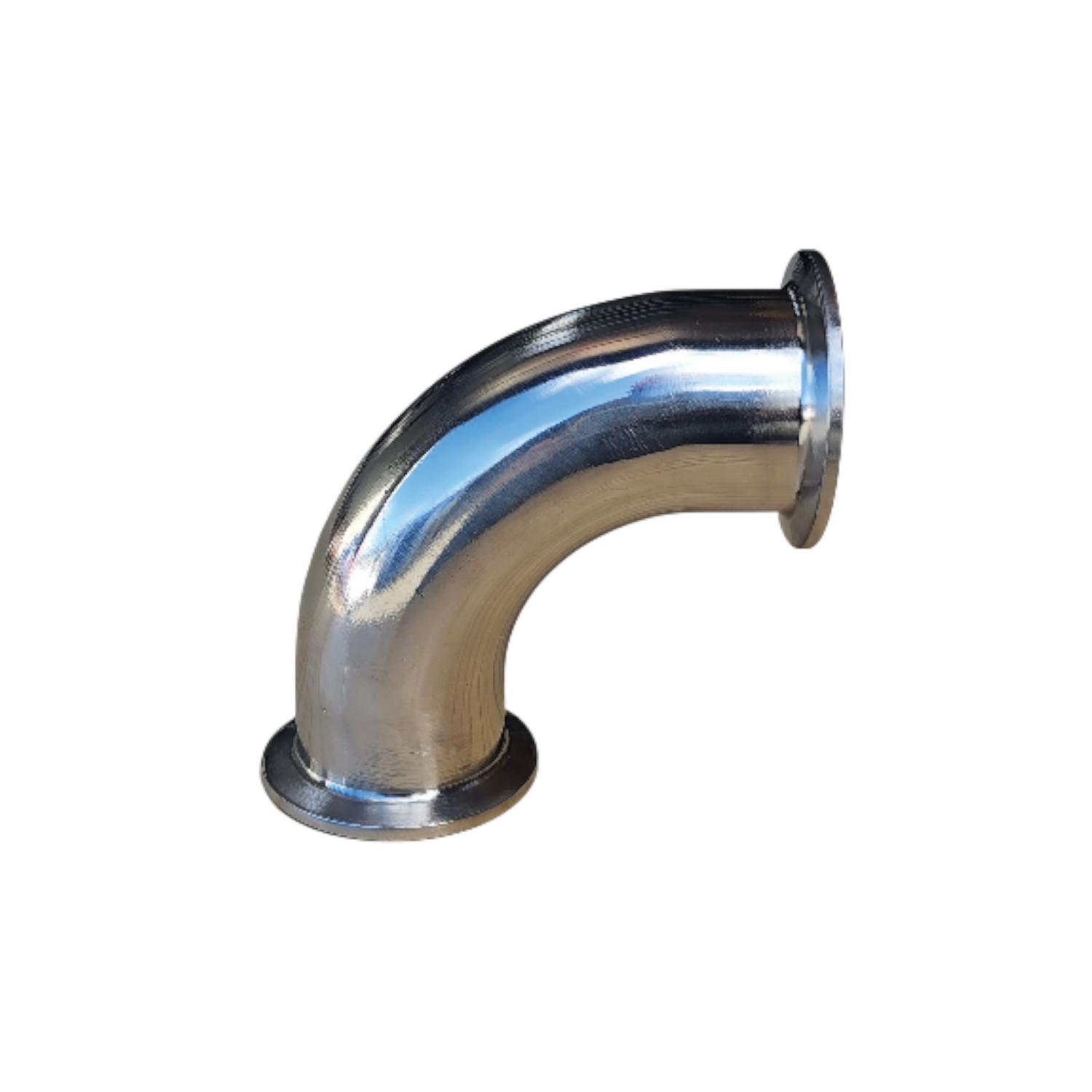

Tri-Clamp 90° Elbow | 304 Stainless Steel

304 Stainless Steel Tri-Clamp (Tri-Clover) 90° Elbow designed for sanitary process piping where a clean, smooth directional change is required. Ideal for breweries, wineries, distilleries, dairies and food-processing facilities, this elbow maintains full hygienic flow while redirecting product lines at a right angle.

Why This Fitting Type?

A Tri-Clamp 90° elbow provides a precise, hygienic right-angle turn in a sanitary pipeline without compromising flow quality. It eliminates sharp internal edges and turbulence that can occur with threaded elbows, making it essential for product-contact lines in food and beverage environments.

• Maintains smooth, unrestricted flow through a polished sanitary bend.
• Ideal for tight installations where pipeline direction must shift cleanly.
• No internal crevices — fully hygienic and CIP-friendly.
• Simple to install using a standard Tri-Clamp gasket and clamp.

Key Features

• Made from 304 stainless steel with sanitary polish.
• Meets 3A, ISO and DIN sanitary tube standards.
• Available in common Tri-Clamp sizes (variant selectable).
• Suitable for process pressures up to 10 bar (system dependent).
• Compatible with major Tri-Clamp hardware brands.

Common Applications

• Brewery and winery production lines
• Distilling, dairy and juice processing systems
• CIP return lines and sanitary manifolds
• Tank connections and equipment transitions

Each Tri-Clamp 90° elbow provides a durable, hygienic and corrosion-resistant solution for redirecting sanitary process piping with maximum cleanliness and efficiency.

To ensure maximum service life and safe performance of your equipment, please follow these general care guidelines:

• Clean after use – Rinse or CIP components to remove product, residue or cleaning chemicals.
• Avoid kinks, crushing or sharp bends – Protect hoses and assemblies from mechanical damage.
• Store correctly – Hang hoses or reels where possible; keep fittings and clamps dry and off the floor.
• Inspect regularly – Check for wear, abrasion, loose clamps, damaged gaskets or compromised seals.
• Use compatible cleaning chemicals – Follow manufacturer guidelines for caustic, acid or sanitiser exposure.
• Protect from high heat / UV – Avoid prolonged exposure to sunlight, heaters or hot surfaces unless rated for it.
• Depressurise before disconnecting – Always release system pressure before removing hoses or fittings.
• Replace worn components promptly – Gaskets, clamps, seals and hose ends should be renewed as needed.


Proper routine care extends lifespan, improves hygiene and ensures safe, reliable operation across all brewery, winery, distillery and food-processing environments.
