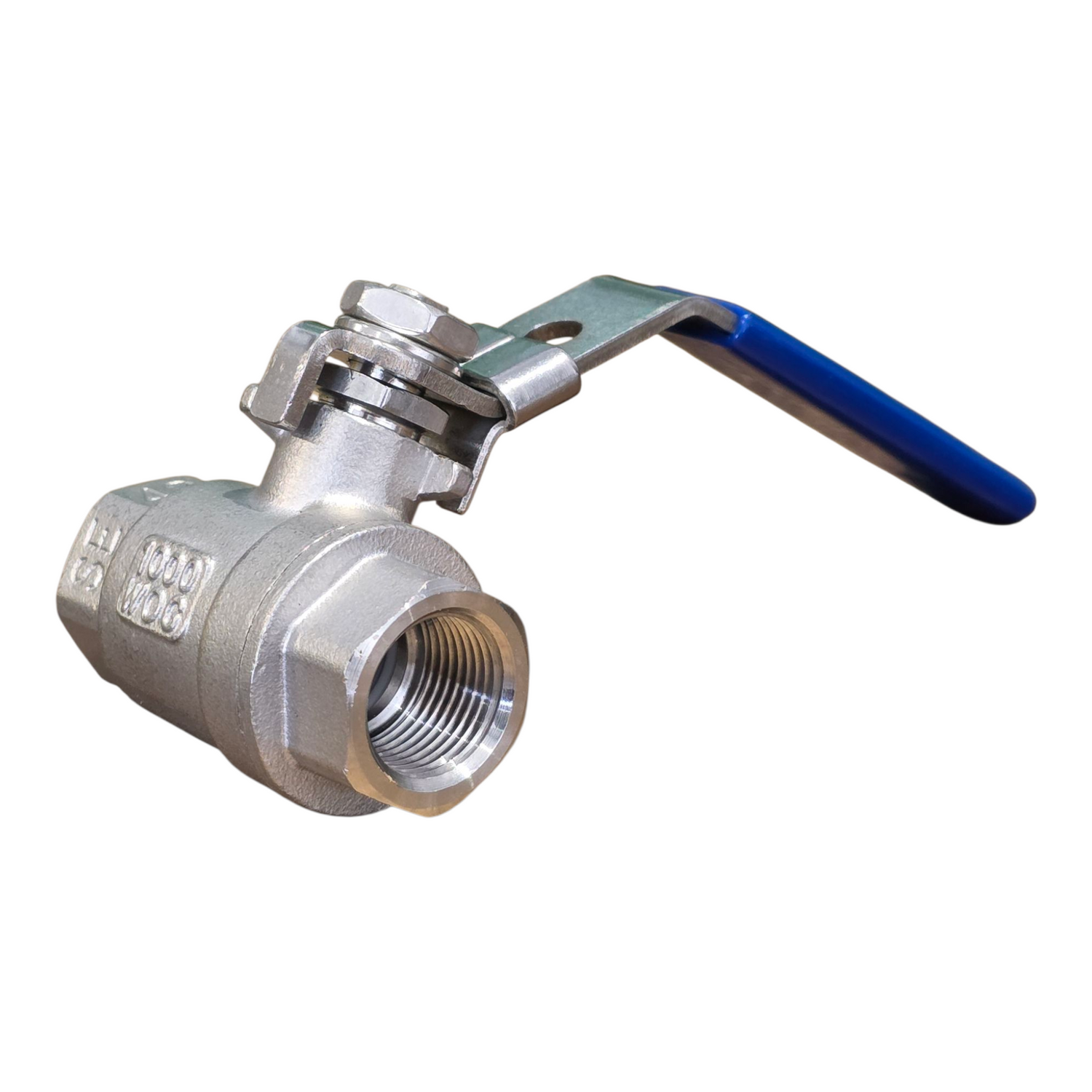

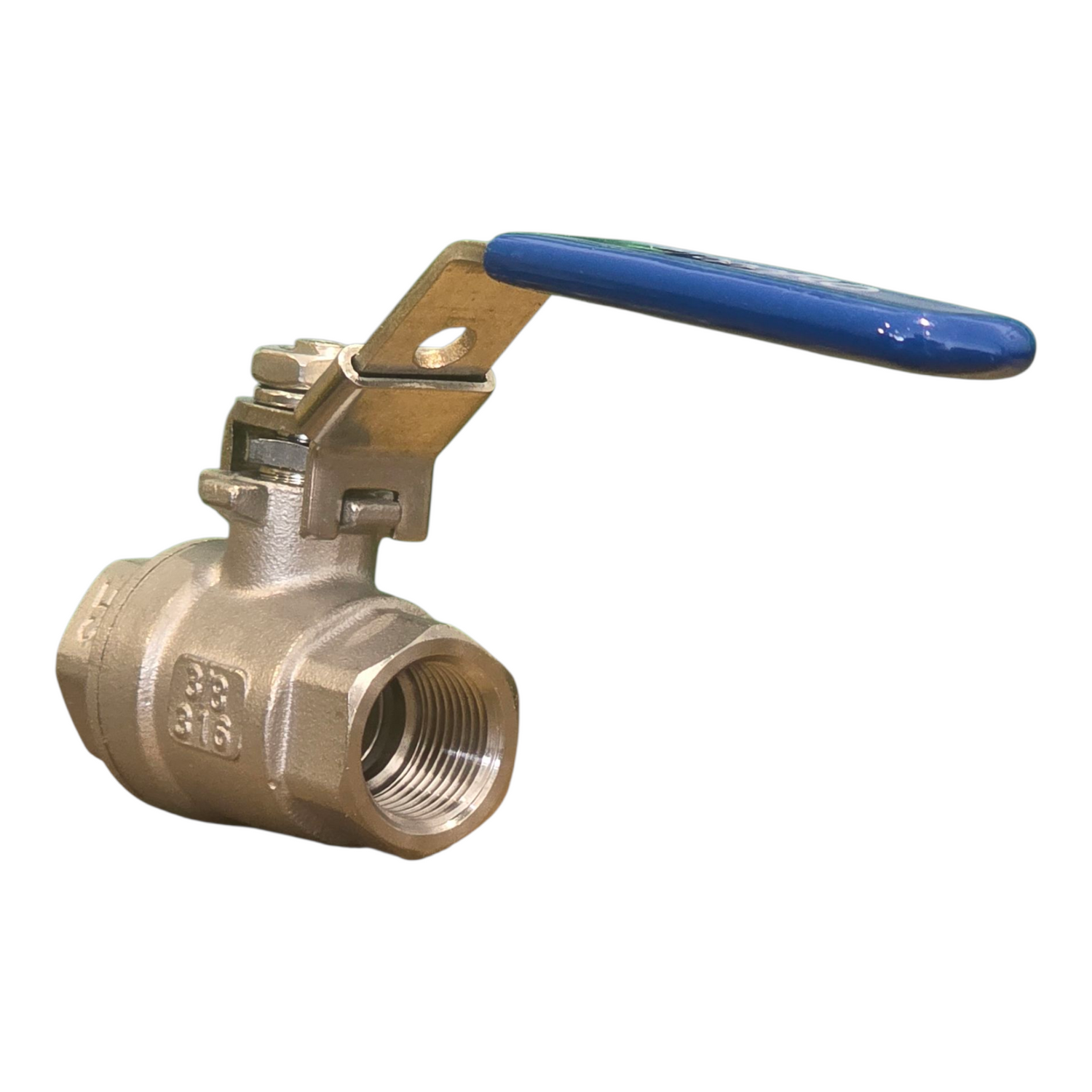

316 Stainless Steel 2 Piece Ball Valve (Lockable) | Full Port | 1000PSI WOG

316 Stainless Steel 2 Piece Ball Valve (Lockable) - 1000PSI Rated for Water, Oil & Gas

Most Common Choice for OEMs and General Industrial Use

The 316 Stainless Steel 2 Piece Ball Valve is the industry standard for reliability, performance, and cost-efficiency. With a lockable flat handle and full port design, these valves provide unrestricted flow and dependable shut-off control for a wide range of applications, including water, oil, and gas.

Applications & Uses

• Ideal for general industrial and process applications
• Commonly used to shut off flow in both directions
• First choice for OEMs due to proven reliability
• Suitable for water, oil, and gas (WOG) systems

Design & Features

• Two-Piece Body Construction: Threaded design allows easy disassembly for servicing or seal replacement
• Full Port / Full Bore: Valve bore matches pipe ID for maximum flow rate
• Lockable Handle: Handle includes removable locking device for safety and security
• Compact Design: Smaller handle profile than heavy-duty models "” perfect for tight installations
• Blow-out Proof Stem: Enhanced safety under pressure
• Threaded BSPP (Female): Quick installation "” no special tools required

Operation

Simple and reliable operation "” when the handle is parallel to the valve, flow is open; when rotated 90° (perpendicular), the valve is closed. The flat stainless handle includes a comfortable plastic grip for quick turning action and can be labeled if required.

Construction & Materials

• Valve Body: Stainless Steel 316 (CF8M)
• Non-Wetted Parts: Stainless Steel 304
• Seats & Seals: Teflon (PTFE) - food-grade compliant
• Handle: Stainless Steel 304 with red plastic cover

Specifications

• Size Range: 1/4" to 3"
• Working Pressure: 1000 PSI (69 bar)
• Temperature Range: -25°C to 150°C (-13°F to 302°F)
• Thread Type: Female BSP Parallel (BSPP)
• Suitable Mediums: Water, Oil, Gas
• Manufacturing Process: Investment Casting for precise tolerances and durability

Advantages

• Compact and lightweight "” ideal for tight installations
• Budget-friendly alternative to Heavy Duty 2 Piece Valves
• Serviceable and rebuildable for long-term use
• High corrosion resistance from marine-grade 316 stainless steel
• Reliable leak-free performance up to 1000 PSI

Performance

• Pressure Rating: 1000 PSI (69 bar)
• Temperature Rating: -25°C to 150°C (-13°F to 302°F)
• Seal Material: PTFE (Teflon)
• Operation: Quarter-turn, full bore

Built to Last. Designed for dependable performance in any fluid system, this valve combines precision engineering with long service life "” making it the go-to choice for professional installers and OEMs.

To ensure maximum service life and safe performance of your equipment, please follow these general care guidelines:

• Clean after use – Rinse or CIP components to remove product, residue or cleaning chemicals.
• Avoid kinks, crushing or sharp bends – Protect hoses and assemblies from mechanical damage.
• Store correctly – Hang hoses or reels where possible; keep fittings and clamps dry and off the floor.
• Inspect regularly – Check for wear, abrasion, loose clamps, damaged gaskets or compromised seals.
• Use compatible cleaning chemicals – Follow manufacturer guidelines for caustic, acid or sanitiser exposure.
• Protect from high heat / UV – Avoid prolonged exposure to sunlight, heaters or hot surfaces unless rated for it.
• Depressurise before disconnecting – Always release system pressure before removing hoses or fittings.
• Replace worn components promptly – Gaskets, clamps, seals and hose ends should be renewed as needed.


Proper routine care extends lifespan, improves hygiene and ensures safe, reliable operation across all brewery, winery, distillery and food-processing environments.
