316 Stainless Steel Camlock Fittings - Premium, Hygienic, and High-Pressure Rated

316 Stainless Steel Camlock Fittings are the premium quick-connect solution for demanding industrial, food-grade, and high-pressure applications. Built for strength, corrosion resistance, and long-term durability, they're the ideal choice for breweries, food processing, chemical transfer, and marine environments.

Manufactured to the international A-A-59326 / MIL-C-27487 specification, each camlock is precisely machined to ensure full interchangeability with other couplings made to the same standard. (Note: The A-A-59326 specification does not apply to ½" (15 mm), 5" (125 mm), and 8" (200 mm) sizes, which are made to manufacturer specifications.)

Available in sizes from ½" to 4", these couplings are machined from solid 316 stainless steel bar stock, fitted with 304 stainless steel cam arms, and sealed with a Buna-N (Nitrile) gasket as standard "” with EPDM or Viton options available for specific chemical or temperature requirements.

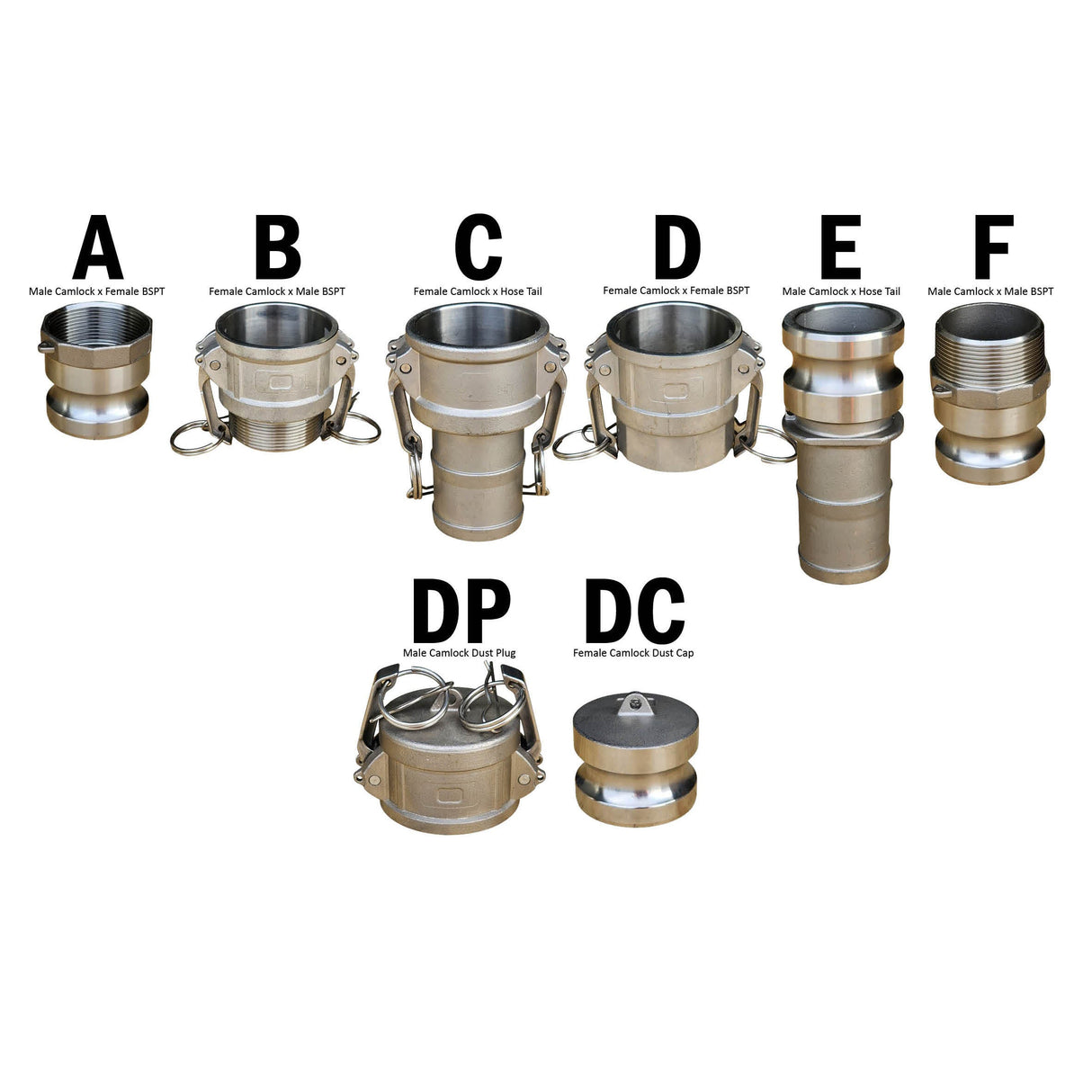

œ”️ COMMON TYPES AVAILABLE

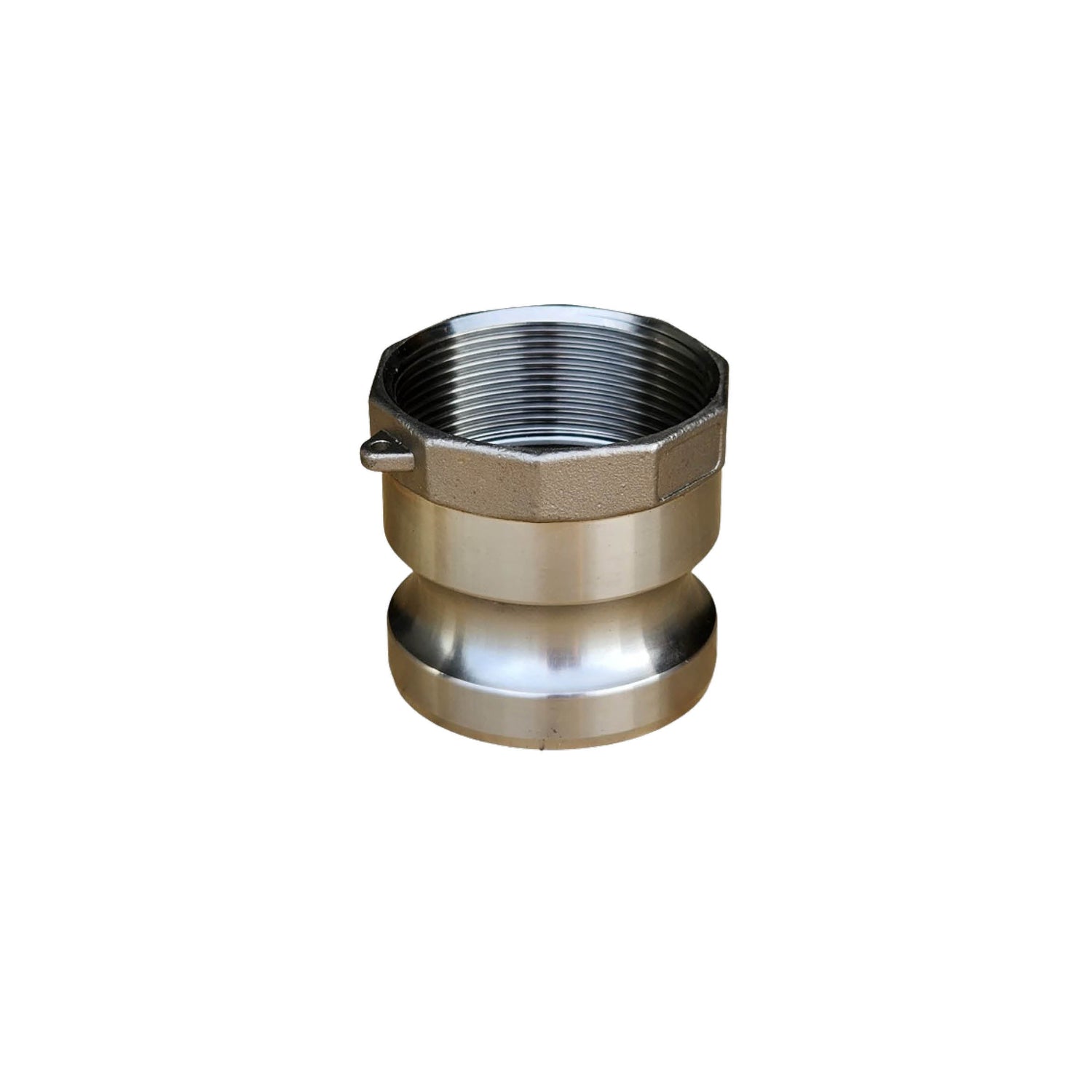

• Type A - Male Adapter x Female BSP Thread

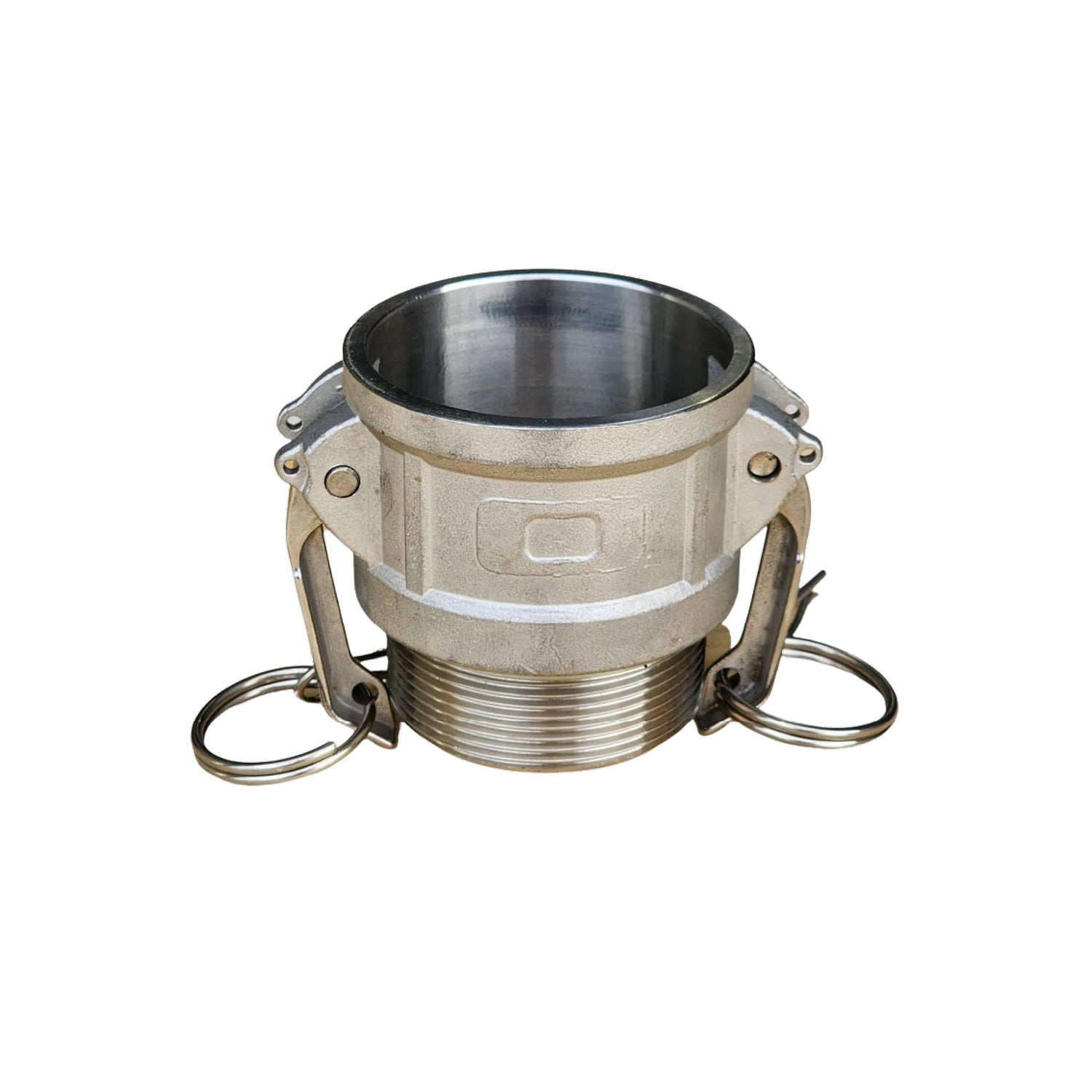

• Type B - Female Coupler x Male BSP Thread

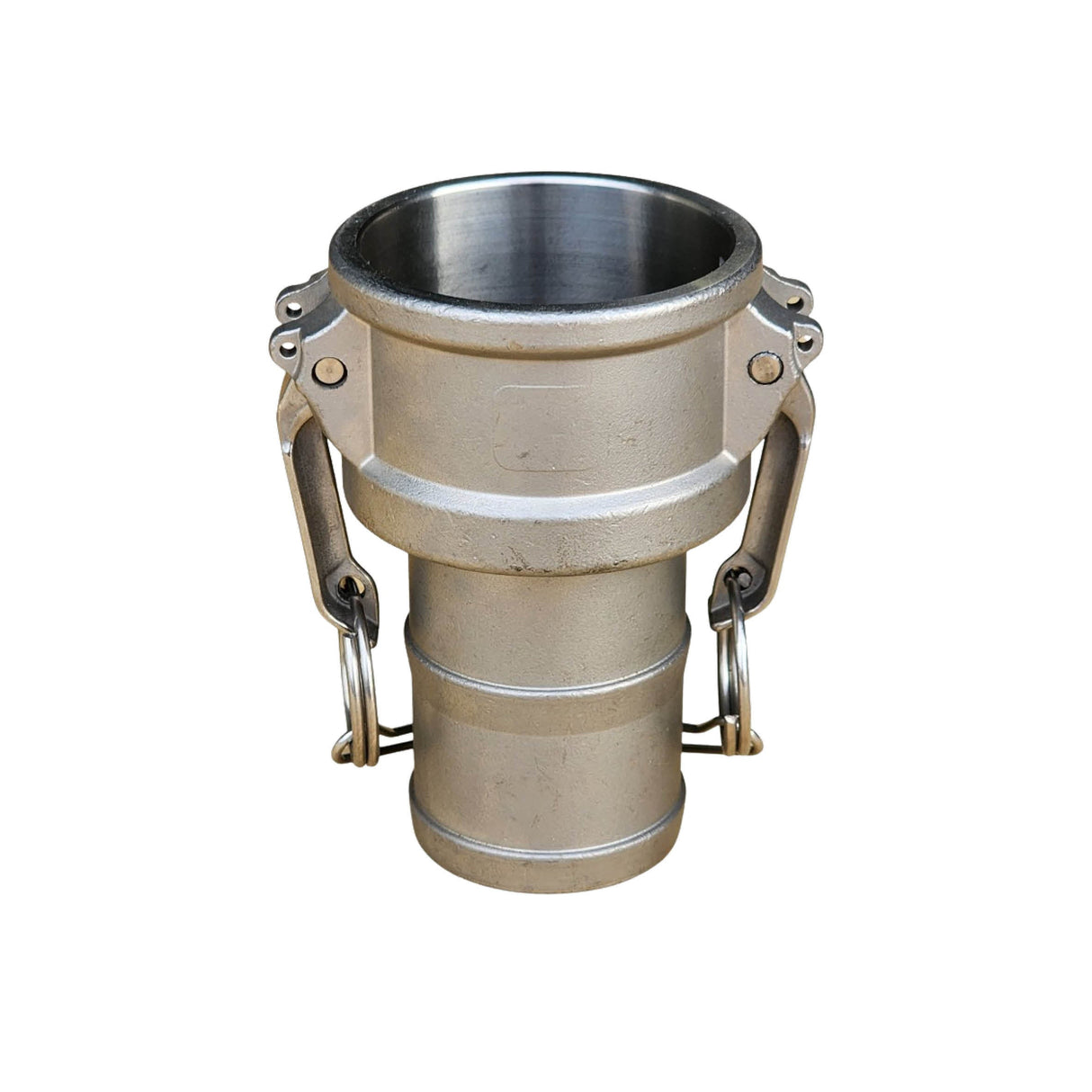

• Type C - Female Coupler x Hose Tail

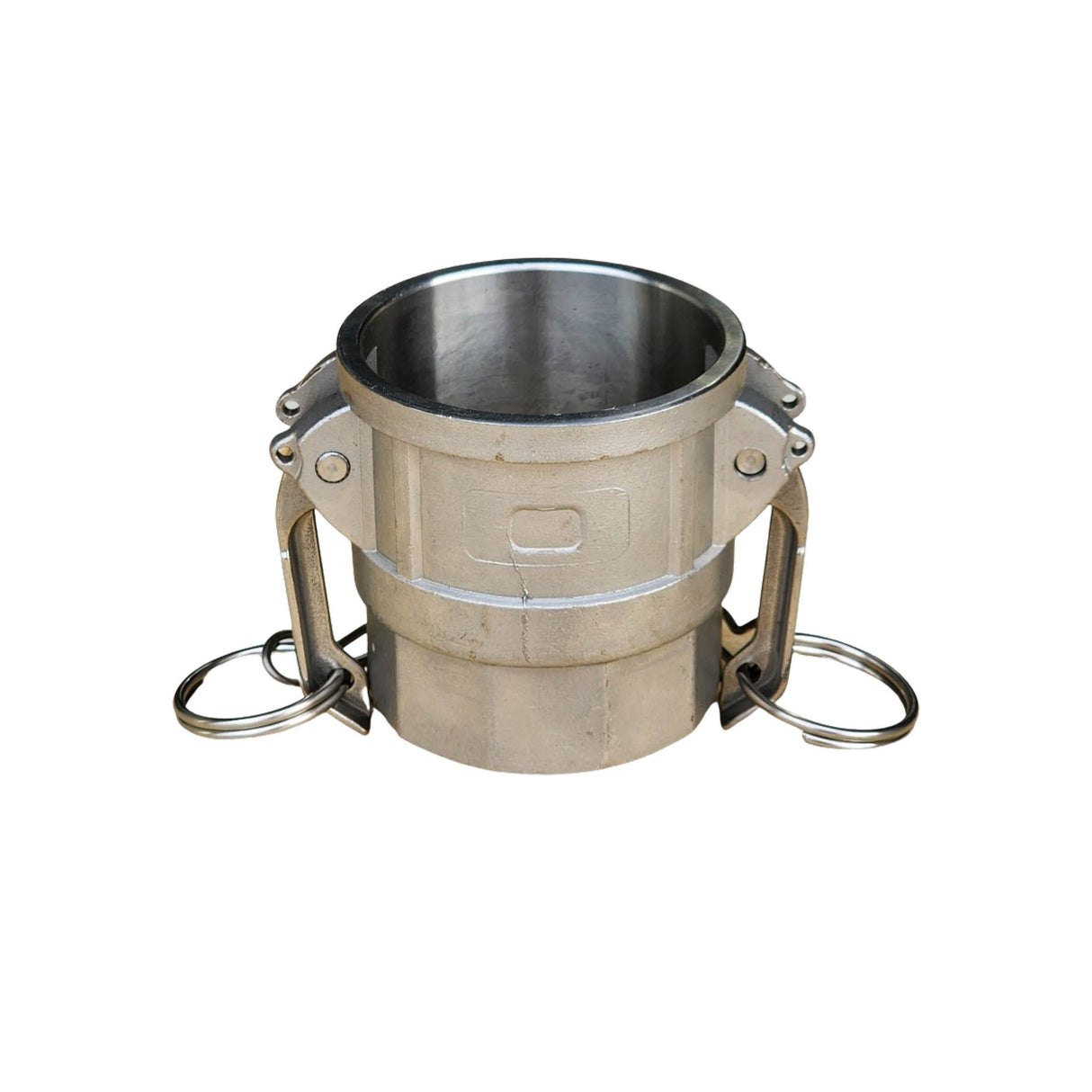

• Type D - Female Coupler x Female BSP Thread

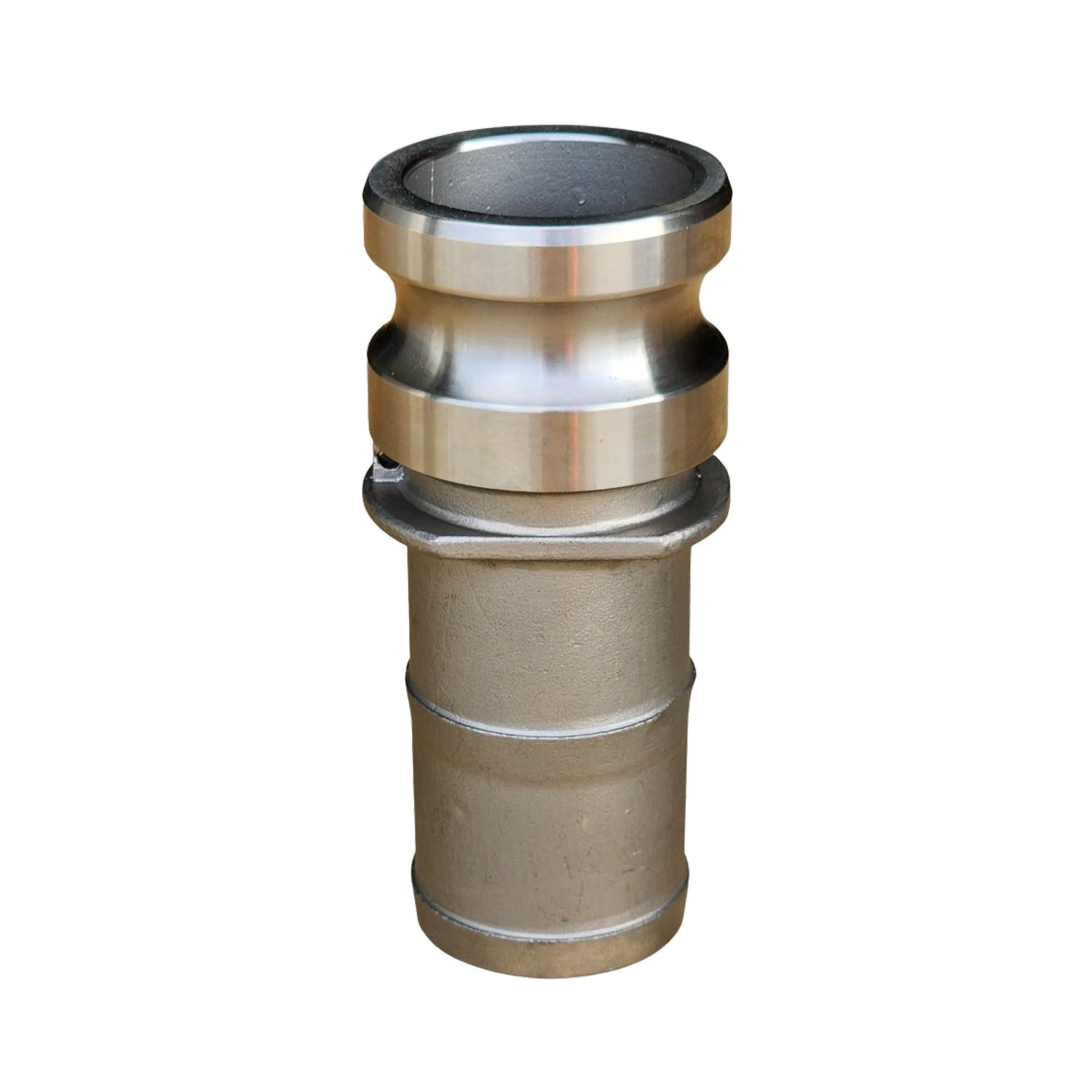

• Type E - Male Adapter x Hose Tail

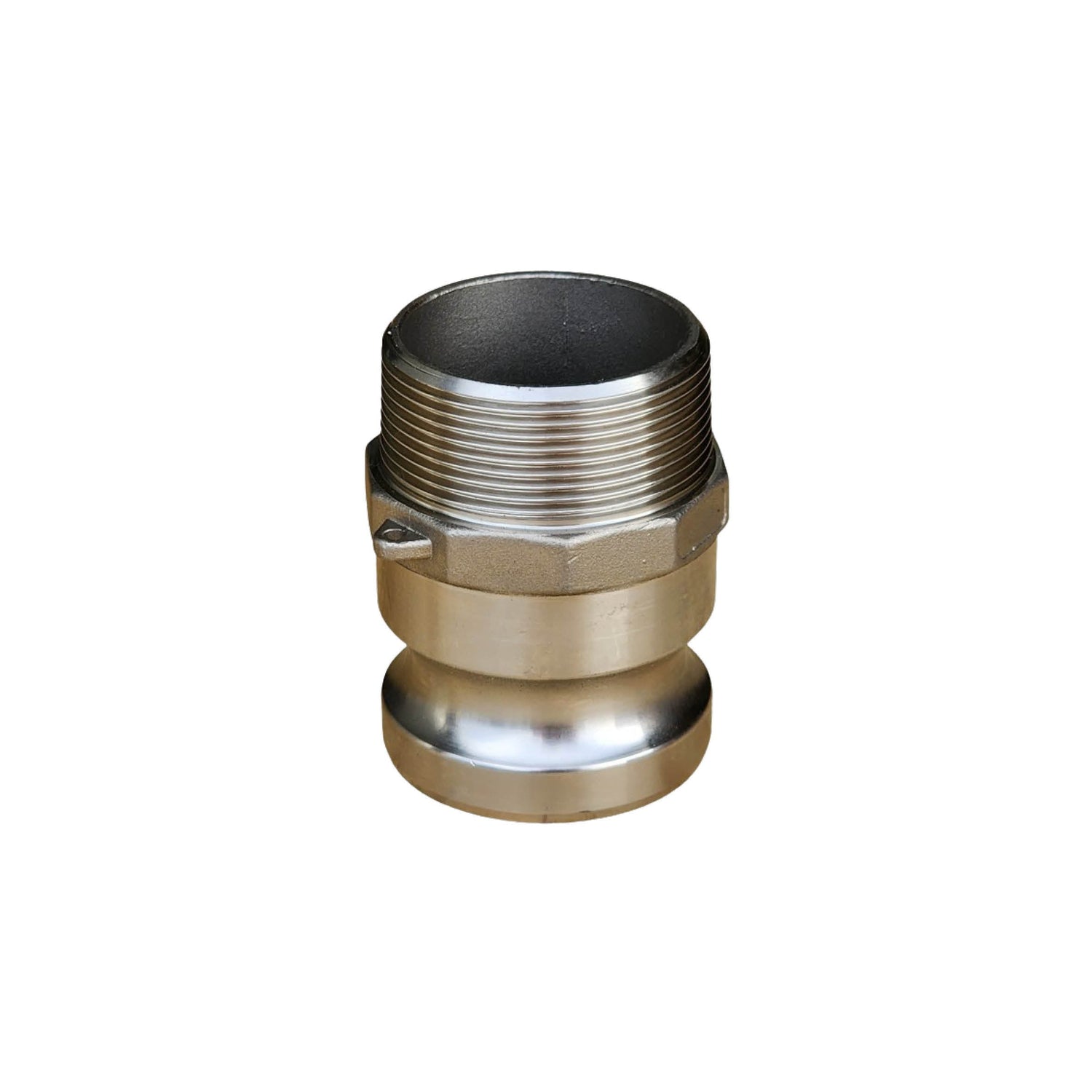

• Type F - Male Adapter x Male BSP Thread

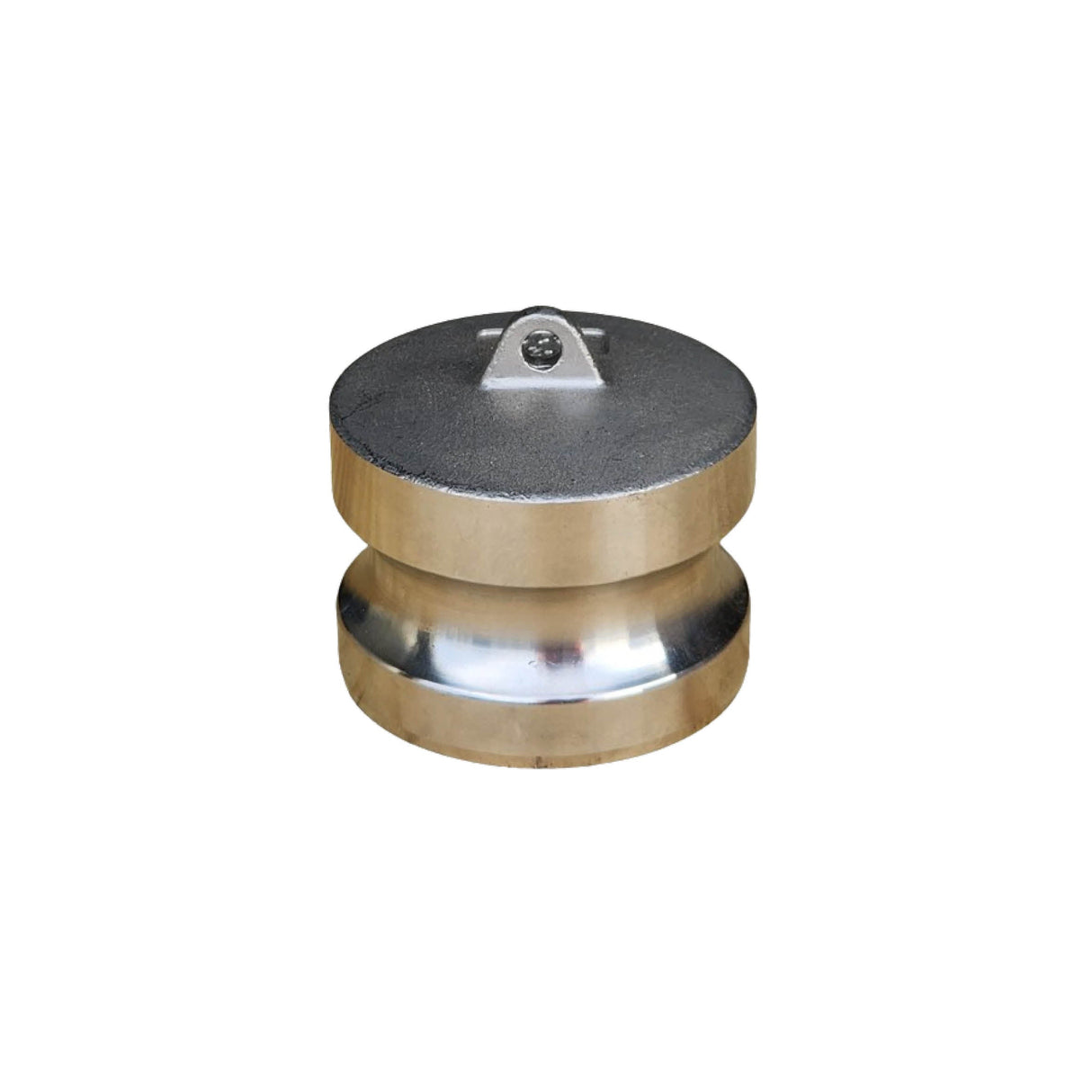

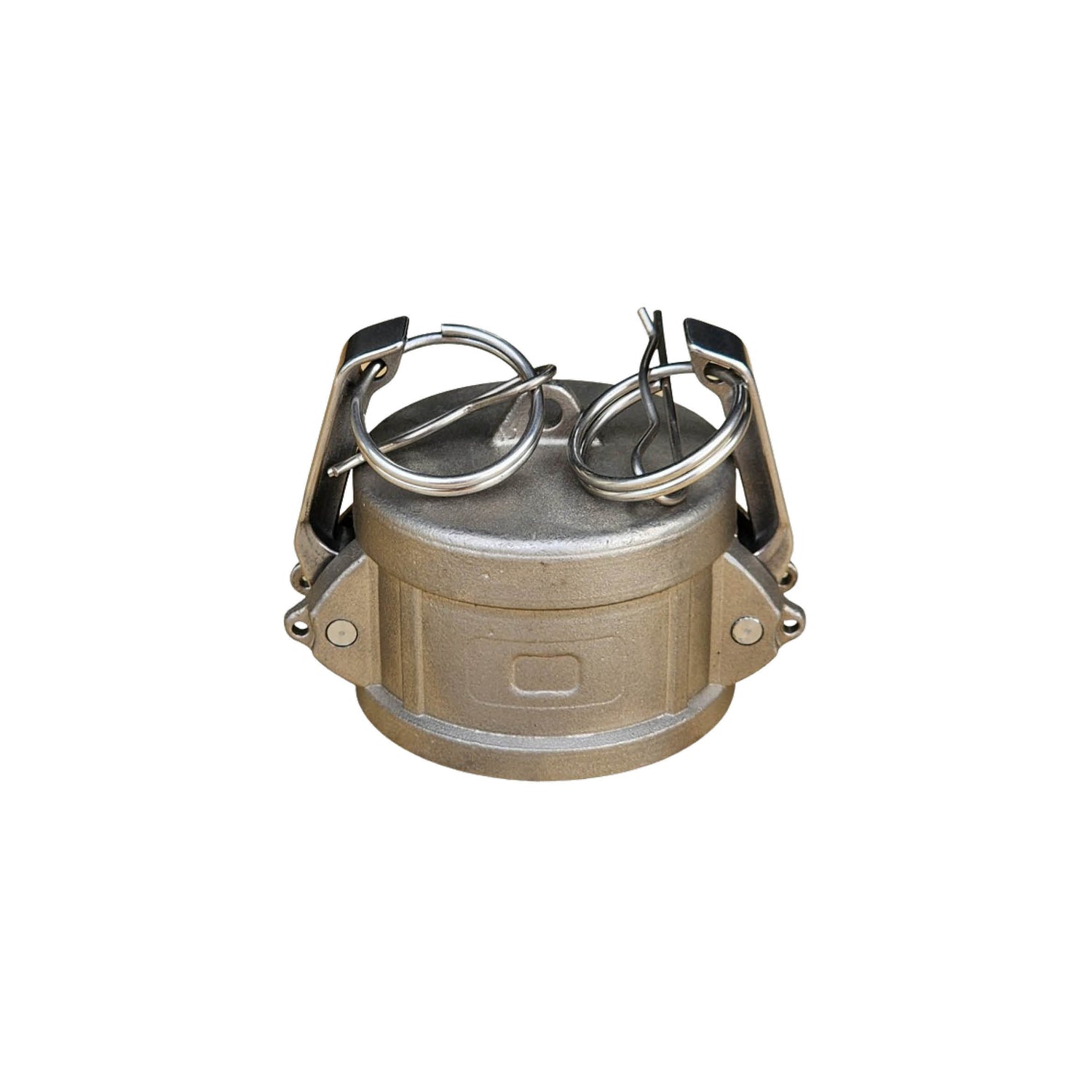

• Dust Cap (DC) & Dust Plug (DP) - Protect open fittings from contamination when not in use

ADVANTAGES OF 316 STAINLESS STEEL CAMLOCKS

• Exceptional corrosion resistance: Ideal for caustic washdown, chemical, and marine environments
• Hygienic and food-safe: Preferred material for breweries, food and beverage, and pharmaceutical applications
• High strength and pressure capability: Handles higher service pressures and temperatures than other materials
• Long lifespan: Maintains performance even after repeated use and cleaning

💡 APPLICATIONS

• Breweries, wineries, and beverage production
• Food and pharmaceutical process lines
• Chemical transfer and caustic systems
• Marine, washdown, and corrosive environments
• Industrial water and high-pressure fluid transfer

🔧 MATERIALS & CONSTRUCTION

• Body: 316 Stainless Steel
• Handles & Pins: Stainless Steel 304
• Gasket: NBR (Buna-N) standard - EPDM and Viton options available
• Manufacturing Method: Precision machined to A-A-59326 / MIL-C-27487

📏 AVAILABLE SIZES

½" (15 mm), ¾" (20 mm), 1" (25 mm), 1¼" (32 mm), 1½" (40 mm), 2" (50 mm), 2½" (63 mm), 3" (75 mm), 4" (100 mm). Larger sizes available on request.

SIZING

BUILT TO LAST, DELIVERED FAST.

To ensure maximum service life and safe performance of your equipment, please follow these general care guidelines:

• Clean after use – Rinse or CIP components to remove product, residue or cleaning chemicals.
• Avoid kinks, crushing or sharp bends – Protect hoses and assemblies from mechanical damage.
• Store correctly – Hang hoses or reels where possible; keep fittings and clamps dry and off the floor.
• Inspect regularly – Check for wear, abrasion, loose clamps, damaged gaskets or compromised seals.
• Use compatible cleaning chemicals – Follow manufacturer guidelines for caustic, acid or sanitiser exposure.
• Protect from high heat / UV – Avoid prolonged exposure to sunlight, heaters or hot surfaces unless rated for it.
• Depressurise before disconnecting – Always release system pressure before removing hoses or fittings.
• Replace worn components promptly – Gaskets, clamps, seals and hose ends should be renewed as needed.


Proper routine care extends lifespan, improves hygiene and ensures safe, reliable operation across all brewery, winery, distillery and food-processing environments.
